Now that we know that within Gaussian geometrical optics a single spherical surface images every object point to a perfect, real or virtual, image point it is easy to see that any row of spherical surfaces separated by homogeneous materials will also image any point perfectly. We first determine the intermediate image of the object point under the most left spherical surface as if the other surfaces are not present and use this intermediate image point as object point for imaging by the next spherical surface and so on. Of course, the intermediate image and object points can be virtual.

Although this procedure is in principle simple, it is nevertheless convenient in Gaussian geometrical optics to introduce the concept of ray vectors and ray matrices to deal with optical system consisting of several spherical surfaces. With ray matrices it is easy to derive how the distance of a given ray to the optical axis and its direction change during propagation through an optical system. This in turn can be used to determine the image plane in an optical system for a given object plane.

In any plane perpendicular to the zz-axis, a ray is determined by the yy-coordinate of the point of intersection of the ray with the plane and the angle α\alpha with the optical (zz)-axis. This angle has a sign and is defined as follows. Let (y1,z1)(y_1,z_1) and (y2,z2)(y_2,z_2) be the coordinates of two points on the ray and let the light propagate from point 1 to point 2. Then we define

α=y2−y1z2−z1.\alpha = \frac{ y_2-y_1}{z_2-z_1}.
(1)

Examples of positive and negative α\alpha are given in Figure 1. The case z2−z1<0z_2-z_1<0 occurs when a ray propagates in the negative zz-direction after it has been reflected by a mirror. According to the sign convention table in the Geometrical Optics chapter, the refractive index of the ambient medium should after the reflection be taken negative. After a second reflection due to which the ray propagates again in the positive zz-direction the refractive index should be chosen positive again.

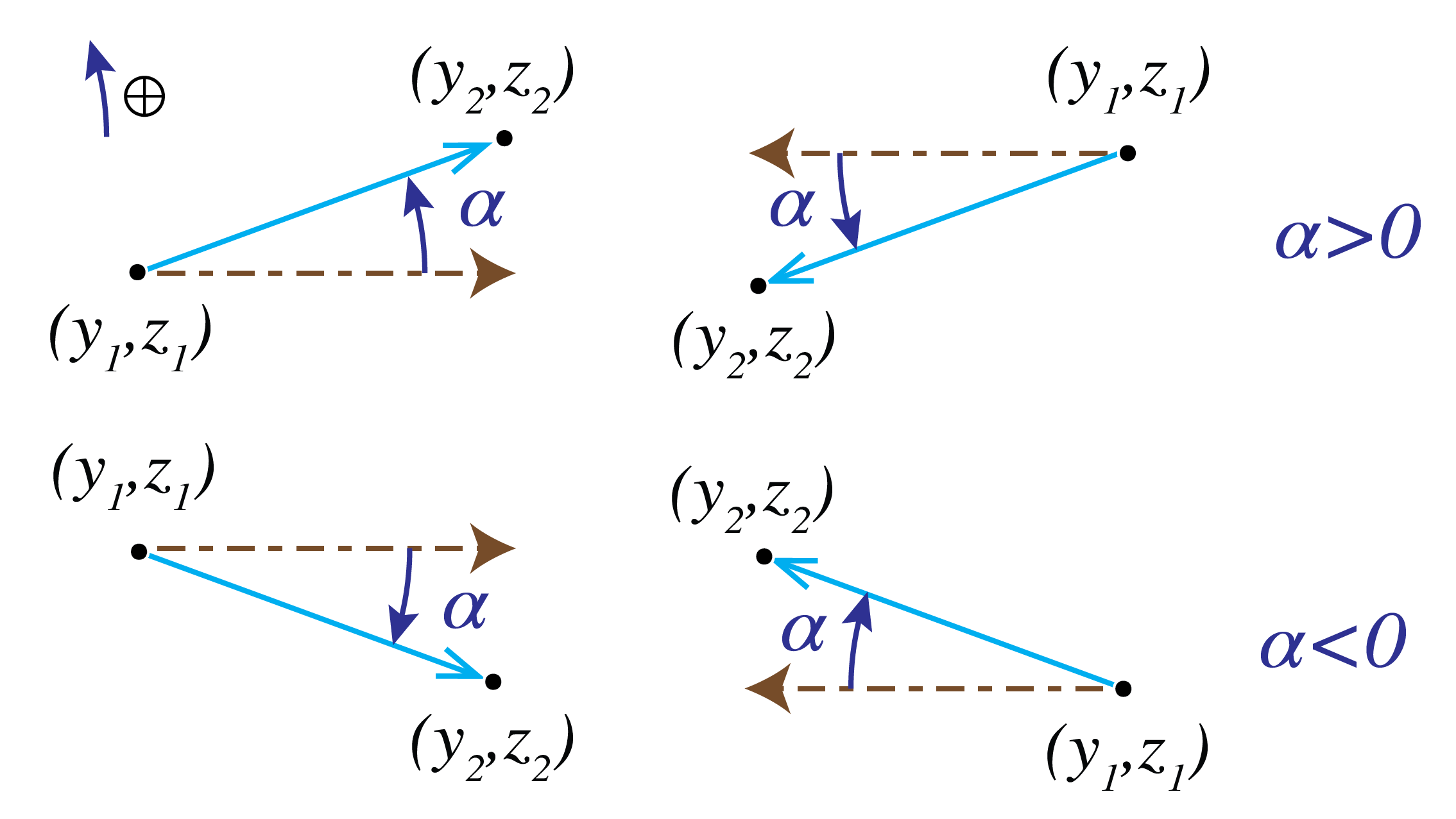

Sign convention for the ray angle. In the upper two figures \alpha>0 while in the lower two figures \alpha<0.

Figure 1:Sign convention for the ray angle. In the upper two figures α>0\alpha>0 while in the lower two figures α<0\alpha<0.

We define the ray vector

(nαy),\begin{align*} \left( \begin{array}{c}n\alpha \\y \end{array} \right), \end{align*}
(2)

where nn is the local refractive index. The definition with the refractive index as factor in the first element of the ray vector turns out to be convenient. The ray vectors of a ray in any two planes z=z1z=z_1, z=z2z=z_2, with z2>z1z_2>z_1, are related by a so-called ray matrix:

(n2α2y2)=M(n1α1y1).\begin{align*} \left( \begin{array}{c}n_2\alpha_2 \\y_2 \end{array}\right) = {\cal M} \left( \begin{array}{c}n_1 \alpha_1 \\y_1 \end{array}\right). \end{align*}
(3)

where

M=(ABCD).\begin{align*} {\cal M} =\left( \begin{array}{cc}A & B \\C & D \end{array}\right). \end{align*}
(4)

The elements of matrix M{\cal M} depend on the optical components and materials between the planes z=z1z=z_1 and z=z2z=z_2.

As an example consider the ray matrix that relates a ray vector in the plane immediately before a spherical surface (see the Geometrical Optics chapter for details on spherical interface imaging) to the corresponding ray vector in the plane immediately behind that surface. Using the paraxial Snell’s law and small-angle approximations from the Geometrical Optics chapter, it follows

n1α1−n2α2=(n2−n1)y1R,\begin{align*} n_1 \alpha_1 - n_2 \alpha_2 = \frac{(n_2-n_1)y_1}{R}, \end{align*}
(5)

where we have replaced α2\alpha_2 by −α2-\alpha_2 in the paraxial Snell’s law equation from the Geometrical Optics chapter, because according to the sign convention, the angle α2\alpha_2 should be taken negative. Because furthermore y2=y1y_2=y_1, we conclude

(n2α2y2)=(n1α1−(n2−n1)y1Ry1)=(1−P01)(n1α1y1),sphericalsurface,\begin{align*} \left( \begin{array}{c}n_2\alpha_2 \\ y_2 \end{array}\right) &= \left( \begin{array}{c}n_1 \alpha_1 - \frac{(n_2-n_1)y_1}{R} \\ y_1 \end{array}\right) \\ &= \left( \begin{array}{cc}1 & -P \\ 0 & 1 \end{array}\right)\left( \begin{array}{c}n_1 \alpha_1 \\ y_1 \end{array}\right), \quad \mathbf{spherical surface,} \end{align*}
(6)

where

P=n2−n1R,\begin{align*} {\cal P}= \frac{n_2-n_1}{R}, \end{align*}
(7)

is as before the power of the surface.

Next we consider a spherical mirror with radius of curvature RR. We will show that the ray matrix between the planes just before and after the mirror is given by:

(n2α2y2)=(1−P01)(n1α1y1),sphericalreflector,\begin{align*} \left( \begin{array}{c}n_2\alpha_2 \\y_2 \end{array}\right) &= \left( \begin{array}{cc}1 & -{\cal P} \\0 & 1 \end{array}\right)\left( \begin{array}{c}n_1 \alpha_1 \\y_1 \end{array}\right), \quad \mathbf{spherical reflector,} \end{align*}
(8)

where

P=2nR,\begin{align*} {\cal P}= \frac{2n}{R}, \end{align*}
(9)

is the power of the mirror, n1=nn_1=n but n2=−nn_2=-n, because the convention is used that if a ray propagates from right to left (i.e. in the negative zz-direction), the refractive index in the ray vectors and ray matrices is chosen negative. Note that when the mirror is flat: R=∞R=\infty, the ray matrix of the reflector implies

n2α2=n1α1,\begin{align*} n_2\alpha_2 = n_1 \alpha_1, \end{align*}
(10)

which agrees with the fact that n2=−n1n_2=-n_1 and according to Eq. (1) α2\alpha_2 and α1\alpha_1 have opposite sign for a mirror.

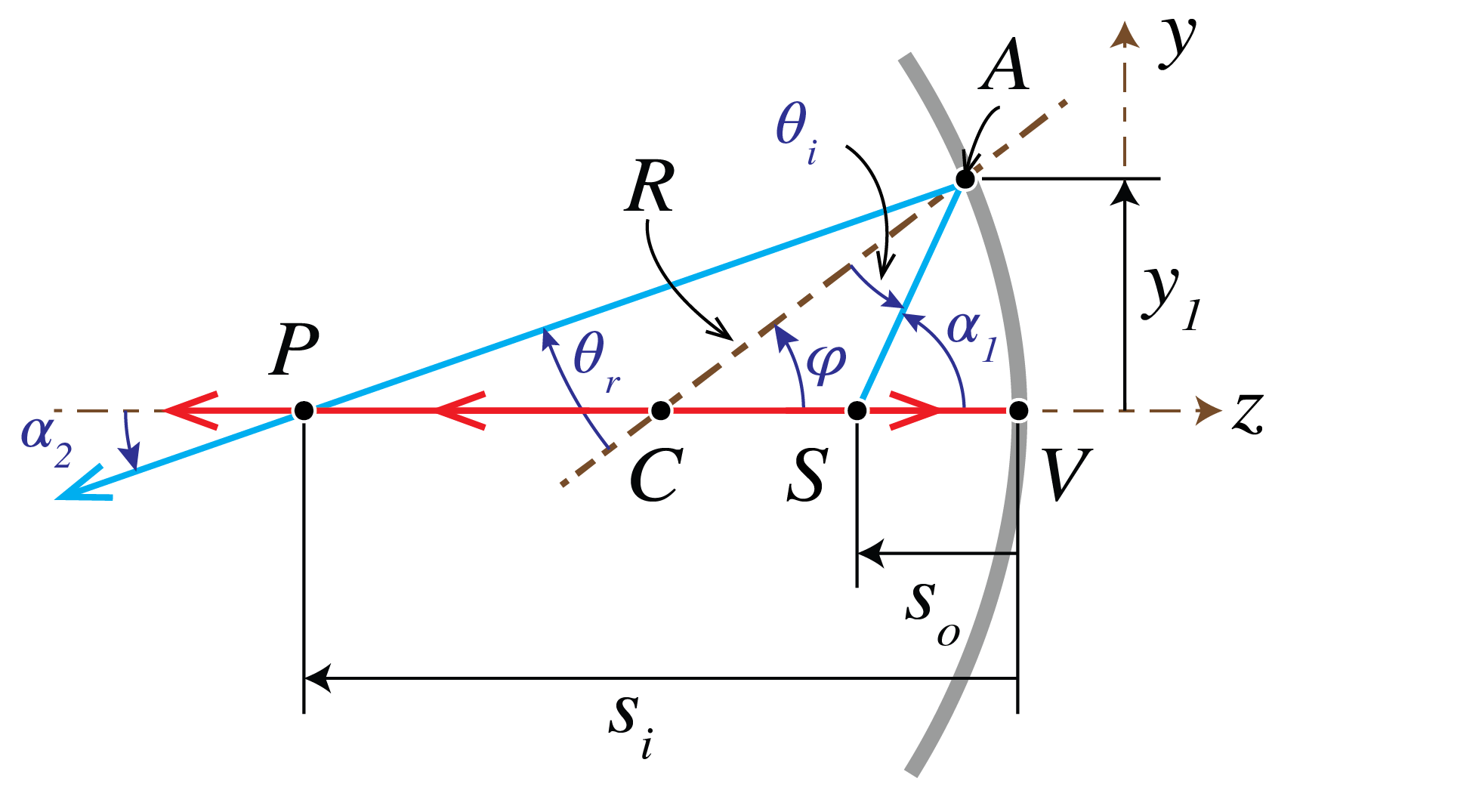

Reflection by a mirror.

Figure 2:Reflection by a mirror.

With all angles positive for the moment, it follows from Figure 2

α1=θi+φ,\begin{align*} \alpha_1&= \theta_i +\varphi, \end{align*}
(11)
α2=φ−θr=φ−θi.\begin{align*} \\ \alpha_2 &= \varphi-\theta_r= \varphi-\theta_i.\end{align*}
(12)

Hence,

α2=−α1+2φ.\begin{align*} \alpha_2= -\alpha_1 + 2\varphi. \end{align*}
(13)

Now

φ≈y1R\varphi\approx \frac{y_1}{R}
(14)

In the situation drawn in Figure 2, Eq. (1) implies that both α2\alpha_2 and α1\alpha _1 are positive. By choosing the refractive index negative after reflection, we conclude from Eq. (13) and Eq. (14):

n2α2=−nα2=nα1−2nRy1=n1α1−2nRy1.\begin{align*} n_2\alpha_2 = -n \alpha_2 = n \alpha_1 - \frac{2n}{R} y_1 = n_1\alpha_1 - \frac{2n}{R} y_1. \end{align*}
(15)

This proves Eq. (8).

We now consider the ray matrix when a ray propagates from a plane z1z_1 to a plane z2z_2 through a medium with refractive index nn. In that case we have α2=α1\alpha_2=\alpha_1 and y2=y1+α1(z2−z1)y_2=y_1 + \alpha_1(z_2-z_1), hence

M=(10z2−z1n1),homogeneousspace.\begin{align*} {\cal M}=\left( \begin{array}{cc}1 & 0 \\\frac{z_2-z_1}{n} & 1 \end{array}\right), \quad \mathbf{homogeneous space}. \end{align*}
(16)

Note that if the light propagates from the left to the right: z2>z1z_2>z_1 and hence z2−z1z_2-z_1 in the first column and second row of the matrix is positive, i.e. it is the distance between the planes.

For two planes between which there are a number of optical components, possibly separated by regions with homogeneous material (e.g. air), the ray matrix can be obtained by multiplying the matrices of the individual components and of the homogeneous regions. The order of the multiplication of the matrices is such that the right-most matrix corresponds to the first component that is encountered while propagating, and so on.

In the ray matrix approach all rays stay in the same plane, namely the plane through the ray and the zz-axis. These rays are called meridional rays. By considering only meridional rays, the imaging by optical systems is restricted to two dimensions. Non-meridional rays are called skew rays. Skew rays do not pass through the optical axis and are not considered in the paraxial theory.

Remarks.

  1. In matrix Eq. (16) z1z_1 and z2z_2 are * coordinates*, i.e. they have a sign.

  2. Instead of choosing the refractive index negative in ray vectors of rays that propagate from right to left, one can reverse the direction of the positive zz-axis after every reflection. The convention to make the refractive index negative is however more convenient in ray tracing software.

  3. The determinant of the ray matrices Eq. (6), Eq. (8) and Eq. (16) are all 1. Since all ray matrices considered below are products of these elementary matrices, the determinant of every ray matrix considered is unity.

1The Lens Matrix

We apply ray matrices to a lens. Figure 3 shows a lens with two spherical surfaces. The refractive index of the lens is nln_l and that of the media to the left and to the right of the lens is n1n_1 and n2n_2, respectively. Let the distance between the vertices be dd.

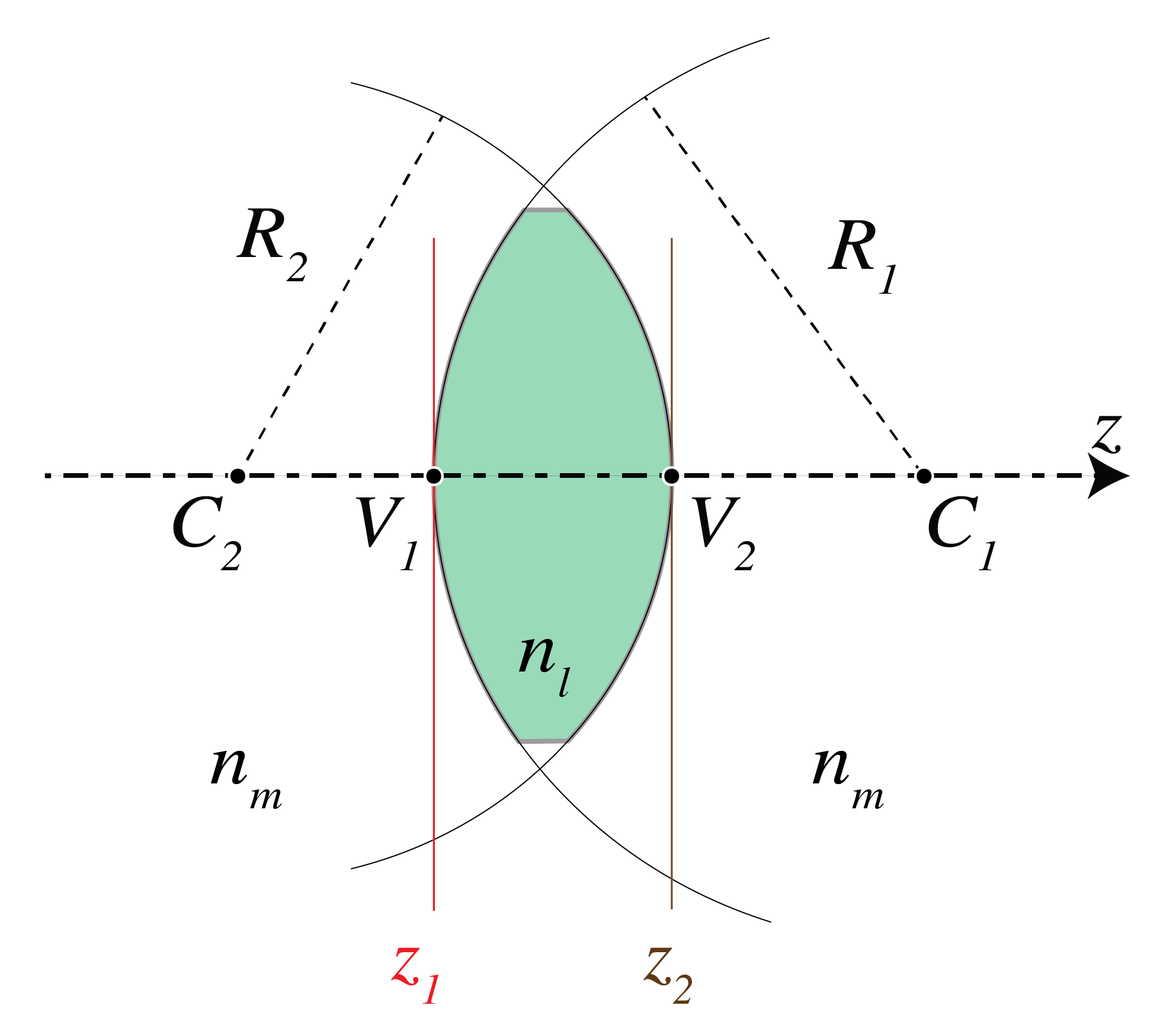

A lens with thickness d. The ray matrix is defined between the planes immediately before and after the lens.

Figure 3:A lens with thickness dd. The ray matrix is defined between the planes immediately before and after the lens.

We will first derive the matrix which maps the ray vector in the plane immediately in front of the lens to that in the plane immediately behind the lens. Let

(n1α1y1)       and (n2α2y2)\begin{align*} \left( \begin{array}{c}n_1 \alpha_1 \\y_1 \end{array}\right) \;\;\; \text{ and } \left( \begin{array}{c}n_2 \alpha_2 \\y_2 \end{array}\right) \end{align*}
(17)

be two vectors in the two planes which correspond to the same ray. The ray is first refracted by the spherical surface with radius R1R_1 and center C1C_1. Using Eq. (6) and Eq. (7) it follows that the matrix between the ray vectors just before and just behind the spherical surface with radius R1R_1 and center C1C_1 is given by

M1=(1−P101),\begin{align*} {\cal M}_1= \left( \begin{array}{cc}1 & - {\cal P}_1 \\0 & 1 \end{array}\right) , \end{align*}
(18)

where

P1=nl−n1R1.{\cal P}_1 = \frac{n_l-n_1}{R_1}.
(19)

The ray propagates then over the distance dd through the material of which the lens is made. The matrix that maps ray vectors from the plane inside the lens immediately behind the left spherical surface to a ray vector in the plane immediately before the right spherical surface follows from Eq. (16):

M2=(10dnl1).\begin{align*} {\cal M}_2=\left( \begin{array}{cc}1 & 0 \\\frac{d}{n_l} & 1 \end{array}\right). \end{align*}
(20)

Finally, the matrix that maps ray vectors from the plane in the lens immediately before the second spherical surface to vectors in the plane immediately behind it is

M3=(1−P201).\begin{align*} {\cal M}_3= \left( \begin{array}{cc}1 & -{\cal P}_2 \\0 & 1 \end{array}\right). \end{align*}
(21)

with

P2=n2−nlR2.{\cal P}_2 = \frac{n_2-n_l}{R_2}.
(22)

Hence the matrix that maps ray vectors in the plane immediately before the lens to ray vectors in the plane immediately behind the lens is given by the matrix product:

M=M3M2M1=(1−dnlP2−P1−P2+dnlP1P2dnl1−dnlP1),lens.\begin{align*} {\cal M}&= {\cal M}_3 {\cal M}_2 {\cal M}_1 \\ &= \left( \begin{array}{cc}1 - \frac{d}{n_l}P_2 & -P_1 - P_2 + \frac{d}{n_l} P_1P_2 \\\frac{d}{n_l} & 1 -\frac{d}{n_l}P_1 \end{array}\right), \quad \mathbf{lens}. \end{align*}
(23)

The quantity

P=P1+P2−dnlP1P2\begin{align*} {\cal P}={\cal P}_1+{\cal P}_2 - \frac{d}{n_l}{\cal P}_1{\cal P}_2 \end{align*}
(24)

is called the power of the lens. It has dimension 1/length and is given in diopter (D{\cal D}), where 1  D=m−11 \,\, {\cal D}=\text{m}^{-1}. The power can be positive and negative. The space to the left of the lens is called the object space and that to the right of the lens is called the image space.

2Focusing with a Thin Lens

For a thin lens the vertices V1V_1 and V2V_2 coincide and d=0d=0, hence Eq. (23) becomes

M=(1−P01),thinlens,\begin{align*} {\cal M} = \left( \begin{array}{cc}1 & -P\\0 & 1 \end{array}\right), \quad \mathbf{thin lens}, \end{align*}
(25)

where

P=P1+P2=(nl−n1R1−n2−nlR2),P=P_1+P_2 = \left( \frac{n_l-n_1}{R_1}-\frac{n_2-n_l}{R_2}\right),
(26)

The origin of the coordinate system is chosen in the common vertex V1=V2V_1=V_2.

By considering a ray in medium 1 which is parallel to the optical axis (α1=0\alpha_1=0) and at height y1y_1, we get n2α2=−Py1n_2 \alpha_2= - Py_1 and y2=y1y_2=y_1. Hence, when P>0P>0, the angle α2\alpha_2 of the ray has sign opposite to y2y_2 and therefore the ray in image space is bent back to the optical axis, yielding a second focal point or image focal point FiF_i. Its zz-coordinate fif_i s:

fi=α2y2=n2P.\begin{align*} f_i = \frac{\alpha_2}{y_2} = \frac{n_2}{{\cal P}}. \end{align*}
(27)

For a ray emerging in image space at height y2y_2 and parallel to the optical axis: α2=0\alpha_2=0, we have y1=y2y_1=y_2 and

n1α1=Py1.\begin{align*} n_1\alpha_1 = P y_1. \end{align*}
(28)

If the power is positive: P>0{\cal P}>0, the angle α1\alpha_1 has the same sign as y1y_1, which implies that the ray in object space has intersected the optical axis in a point FoF_o with zz-coordinate: z=foz=f_o

fo=−y1α1=−n1P.\begin{align*} f_o = -\frac{y_1}{\alpha_1} = -\frac{n_1}{{\cal P}}. \end{align*}
(29)

The point FoF_o is called the first focal point or object focal point.

We conclude that when the power P{\cal P} of the lens is positive, fi>0f_i>0 and −fo>0-f_o>0, which means that the image and object focal points are in the image and object space, respectively, hence they are both real. A lens with positive power is called convergent or positive. It makes incident bundles of rays convergent or less divergent.

A lens with negative power is called divergent and has fi<0f_i<0, −fo<0-f_o<0. It makes incident rays more divergent or less convergent. Incident rays which are parallel to the optical axis are refracted away from the optical axis and seem to come from a point in front of the lens with zz-coordinate fi<0f_i<0. Hence the image focal point does not correspond to a location where there is an actual concentration of light intensity, i.e. it is virtual. The object focal point is a virtual object point, because only a bundle of incident rays that are converging to a certain point behind the negative lens can be turned into a bundle of rays parallel to the optical axis.

With the results obtained for the focal coordinates we can rewrite the lens matrix of a thin lens as

M=(1−n2fi01),thinlens.\begin{align*} {\cal M} = \left( \begin{array}{cc}1 & -\frac{n_2}{f_i} \\0 & 1 \end{array}\right), \quad \mathbf{thin lens}. \end{align*}
(30)

3Imaging with a Thin Lens

We first consider a general ray matrix Eq. (3), Eq. (4) between two planes z=z1z=z_1 and z=z2z=z_2 and ask the following question: what are the properties of the ray matrix such that the two planes are images of each other, or (as this is also called) are each other’s conjugate? Clearly for these planes to be each other’s image, we should have that for every point coordinate y1y_1 in the plane z=z1z=z_1 there is a point with some coordinate y2y_2 in the plane z=z2z=z_2 such that any ray through (y1,z1)(y_1,z_1) (within some cone of rays) will pass through point (y2,z2)(y_2,z_2). Hence for any angle α1\alpha_1 (in some interval of angles) there is an angle α2\alpha_2 such that Eq. (3) is valid. This means that for any y1y_1 there is a y2y_2 such that for all angles α1\alpha_1:

y2=Cn1α1+Dy1,\begin{align*} y_2=C n_1\alpha_1 + D y_1, \end{align*}
(31)

This requires that

C=0,conditionforimaging.\begin{align*} C=0, \quad \mathbf{condition for imaging}. \end{align*}
(32)

The ratio of y2y_2 and y1y_1 IS the magnification MM. Hence,

M=y2y1=D,\begin{align*} M=\frac{y_2}{y_1} = D, \end{align*}
(33)

is the magnification of the image (this quantity has sign).

To determine the image by a thin lens we first derive the ray matrix between two planes z=z1<0z=z_1<0 and z=z2>0z=z_2>0 on either side of the thin lens. The origin of the coordinate system is again at the vertex of the thin lens. This ray matrix is the product of the matrix for propagation from z=z1z=z_1 to the plane immediately in front of the lens, the matrix of the thin lens and the matrix for propagation from the plane immediately behind the lens to the plane z=z2z=z_2:

M=(10z2n21)(1−P01)(10−z1n11)=(1+z1n1P−P−z1n1+z2n2+z1z2n1n2P1−z2n2P)\begin{align*} {\cal M} &= \left( \begin{array}{cc}1 & 0 \\\frac{z_2}{n_2} & 1 \end{array}\right) \left( \begin{array}{cc}1 & - {\cal P} \\0 & 1 \end{array}\right) \left( \begin{array}{cc}1 & 0 \\\frac{-z_1}{n_1} & 1 \end{array}\right) \\ &= \left( \begin{array}{cc}1+\frac{z_1}{n_1}{\cal P} & -{\cal P} \\-\frac{z_1}{n_1} + \frac{z_2}{n_2} + \frac{z_1z_2}{n_1 n_2}{\cal P} & 1-\frac{z_2}{n_2} {\cal P} \end{array}\right) \end{align*}
(34)

The imaging condition Eq. (32) implies:

−n1so+n2si=P,Lensmaker′s    Formula,\begin{align*} -\frac{n_1}{s_o} + \frac{n_2}{s_i}={\cal P}, \quad \bf{Lensmaker's \;\; Formula}, \end{align*}
(35)

where we have written so=z1s_o=z_1 and si=z2s_i=z_2 for the zz-coordinates of the object and the image. Because for the thin lens matrix Eq. (34): D=1−z2/fiD=1-z_2/f_i, it follows by using Eq. (35) that the magnification Eq. (33) is given by

M=yiyo=1−sifi=siso,\begin{align*} M = \frac{y_i}{y_o}= 1-\frac{s_i}{f_i}= \frac{s_i}{s_o}, \end{align*}
(36)

where we have written now yoy_o and yiy_i instead of y1y_1 and y2y_2, respectively.

Remark. The Lensmaker’s formula for imaging by a thin lens can alternatively be derived by using the single-surface imaging formula from the Geometrical Optics chapter for the two spherical surfaces of the lens. We first image a given point SS by the left spherical surface using that imaging formula as if the second surface were absent. The obtained intermediate image P′P' is then imaged by the second spherical surface as if the first surface were absent. P′P' can be a real or virtual object for the second surface. The derivation is carried out in Problem 2.5.

Analogous to the case of a single spherical surface, an image is called a real image if it is to the right of the lens (si>0s_i>0) and is called a virtual image when it seems to be to the left of the lens (si<0s_i<0). An object is called a real object if it is to the left of the lens (so<0s_o<0) and is a virtual object if it seems to be right of the lens (so>0s_o>0). For a positive lens: P>0{\cal P}>0 and hence Eq. (35) implies that si>0s_i>0 provided ∣so∣>∣fo∣|s_o|>|f_o|, which means that the image by a convergent lens is real if the object is further from the lens than the object focal point FoF_o. The case so>0s_o>0 corresponds to a virtual object, i.e. to the case of a converging bundle of incident rays, which for an observer in object space seems to converge to a point at distance sos_o behind the lens. A convergent lens (fi>0f_i>0) will then make an image between the lens and the second focal point. In contrast, a diverging lens (fi<0f_i<0) can turn the incident converging bundle into a real image only if the virtual object point is between the lens and the focal point. If the virtual object point has larger distance to the lens, the convergence of the incident bundle is too weak and the diverging lens then refracts this bundle into a diverging bundle of rays which seem to come from a virtual image point in front of the lens (si<0s_i<0).

Instead of using ray matrices, one can construct the image with a ruler. Consider the imaging of a finite object S1S2S_1S_2 as shown in Figure 4 for the case that the media to the left and right lens are the same. Let yoy_o be the y-coordinate of S2S_2. We have yo>0y_o>0 when the object is above the optical axis.

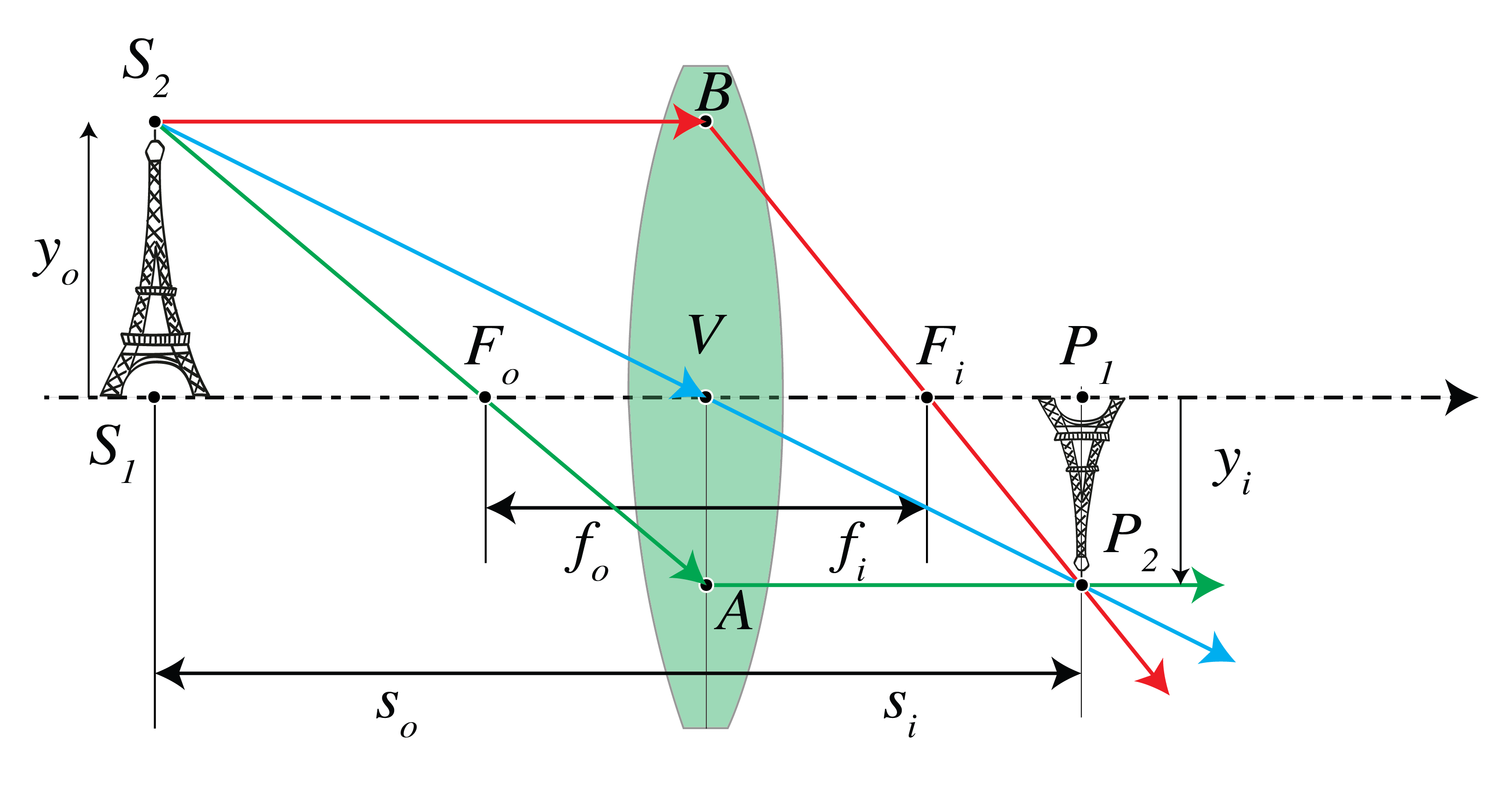

Object and image for a thin lens.

Figure 4:Object and image for a thin lens.

Draw the ray through the focal point FoF_o in object space and the ray through the center VV of the lens. The first ray becomes parallel in image space. The latter intersects both surfaces of the lens almost in their (almost coinciding) vertices and therefore the refraction is opposite at both surfaces and the ray exits the lens parallel to its direction of incidence. Furthermore, its lateral displacement can be neglected because the lens is thin. (Of course, this is not correct when the refractive indices to the left and right of the lens are different). Hence, the ray through the center of a thin lens is not refracted. The intersection in image space of the two rays gives the location of the image point P2P_2 of S2S_2. The image is real if the intersection occurs in image space and is virtual otherwise. For the case of a convergent lens with a real object with yo>0y_o>0 as shown in Figure 4, it follows from the similar triangles Δ BVFi\Delta\,\text{BV}\text{F}_i and Δ P2P1Fi\Delta\, \text{P}_2\text{P}_1\text{F}_i that

yo∣yi∣=fisi−fi.\begin{align*} \frac{y_o}{|y_i|} = \frac{f_i}{s_i -f_i}. \end{align*}
(37)

From the similar triangles Δ S2S1Fo\Delta\, \text{S}_2\text{S}_1\text{F}_o and Δ AVFo\Delta\, \text{AVF}_o:

∣yi∣yo=fifo−so.\begin{align*} \frac{|y_i|}{y_o}=\frac{f_i}{f_o-s_o}. \end{align*}
(38)

here we used ∣fo∣=fi|f_o|=f_i. (the absolute value of yiy_i is taken because according to our sign convention yiy_i in Figure 4 is negative whereas Eq. (38) is a ratio of lengths). By multiplying these two equations we get the Newtonian form of the lens equation (valid when n2=n1n_2=n_1):

xoxi=−fi2=−fo2,\begin{align*} x_o x_i =- f_i^2=- f_o^2, \end{align*}
(39)

where xox_o and xix_i are the zz-coordinates of the object and image relative to those of the first and second focal point, respectively:

xo=so−fo,      xi=si−fi.\begin{align*} x_o = s_o-f_o, \;\;\; x_i = s_i-f_i. \end{align*}
(40)

Hence xox_o is negative if the object is to the left of FoF_o and xix_i is positive if the image is to the right of FiF_i.

The transverse magnification is

M=yiyo=siso=−xifi,\begin{align*} M=\frac{y_i}{y_o} = \frac{s_i}{s_o} = -\frac{x_i}{f_i}, \end{align*}
(41)

where the second identity follows from considering the similar triangles ΔP2P1Fi\Delta \text{P}_2\text{P}_1\text{F}_i and ΔBVFi\Delta \text{BVF}_i in Figure 4. A positive MM means that the image is erect, a negative MM means that the image is inverted.

All equations are also valid for a thin negative lens and for virtual objects and images. Examples of real and virtual object and image points for a positive and a negative lens are shown in Figure 5 and Figure 6.

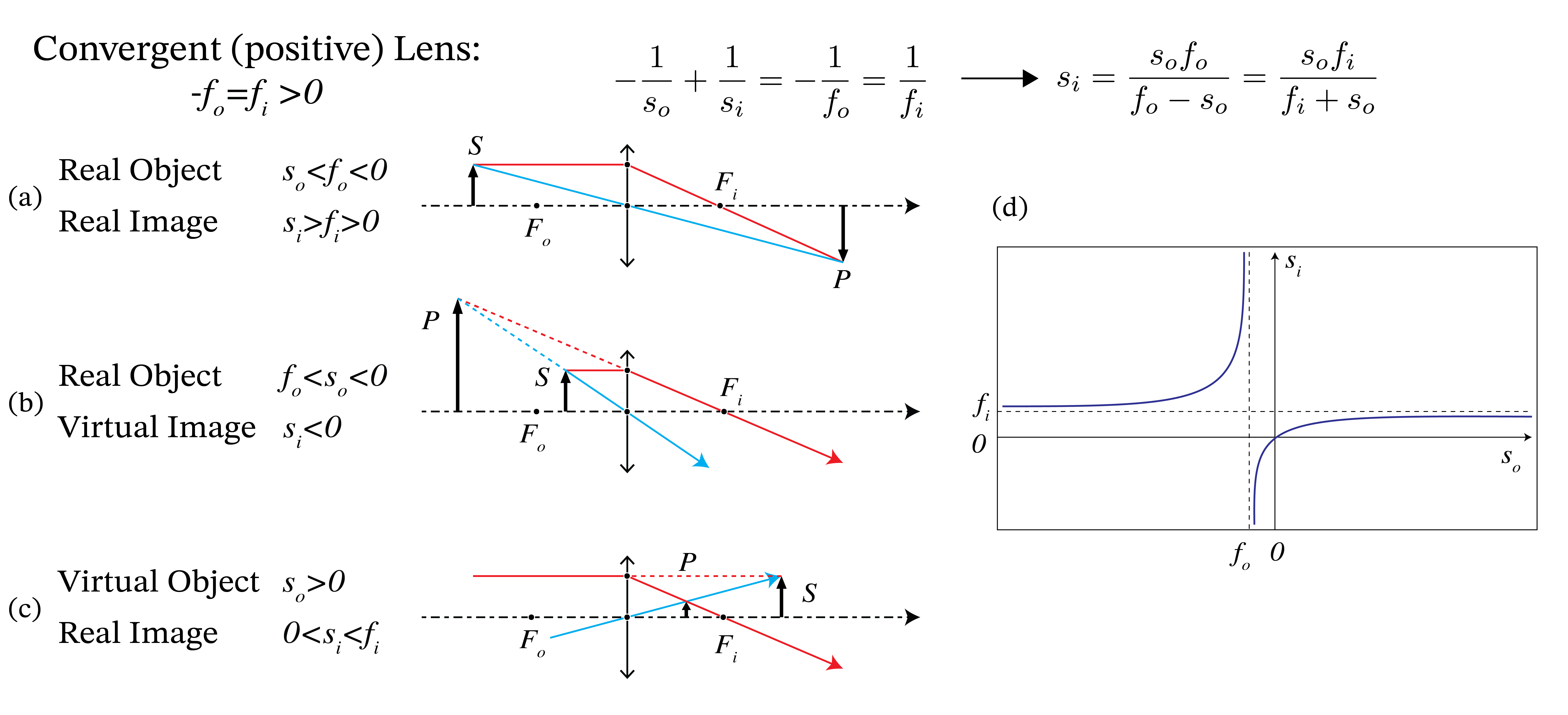

Real and virtual objects and images for a convergent thin lens with the same refractive index left and right of the lens, i.e. -f_o=f_i>0. In (a) the object is real with s_o<f_o and the image is real as well (s_i>0). In (b) the object is between the front focal point and the lens: f_o< s_o<0. Then the rays from the object are too divergent for the lens to make them convergent in image space and hence the image is virtual: s_i<0. In (c) there is a cone of converging rays incident on the lens from the left which, in the absence of the lens, would converge to point S behind the lens. Therefore S is a virtual object (s_0>0). The image is real and can be constructed with the two rays shown. In (d) s_i is shown as function of s_o for a convergent lens (see ).

Figure 5:Real and virtual objects and images for a convergent thin lens with the same refractive index left and right of the lens, i.e. −fo=fi>0-f_o=f_i>0. In (a) the object is real with so<fos_o<f_o and the image is real as well (si>0s_i>0). In (b) the object is between the front focal point and the lens: fo<so<0f_o< s_o<0. Then the rays from the object are too divergent for the lens to make them convergent in image space and hence the image is virtual: si<0s_i<0. In (c) there is a cone of converging rays incident on the lens from the left which, in the absence of the lens, would converge to point SS behind the lens. Therefore SS is a virtual object (s0>0s_0>0). The image is real and can be constructed with the two rays shown. In (d) sis_i is shown as function of sos_o for a convergent lens (see Eq. (35)).

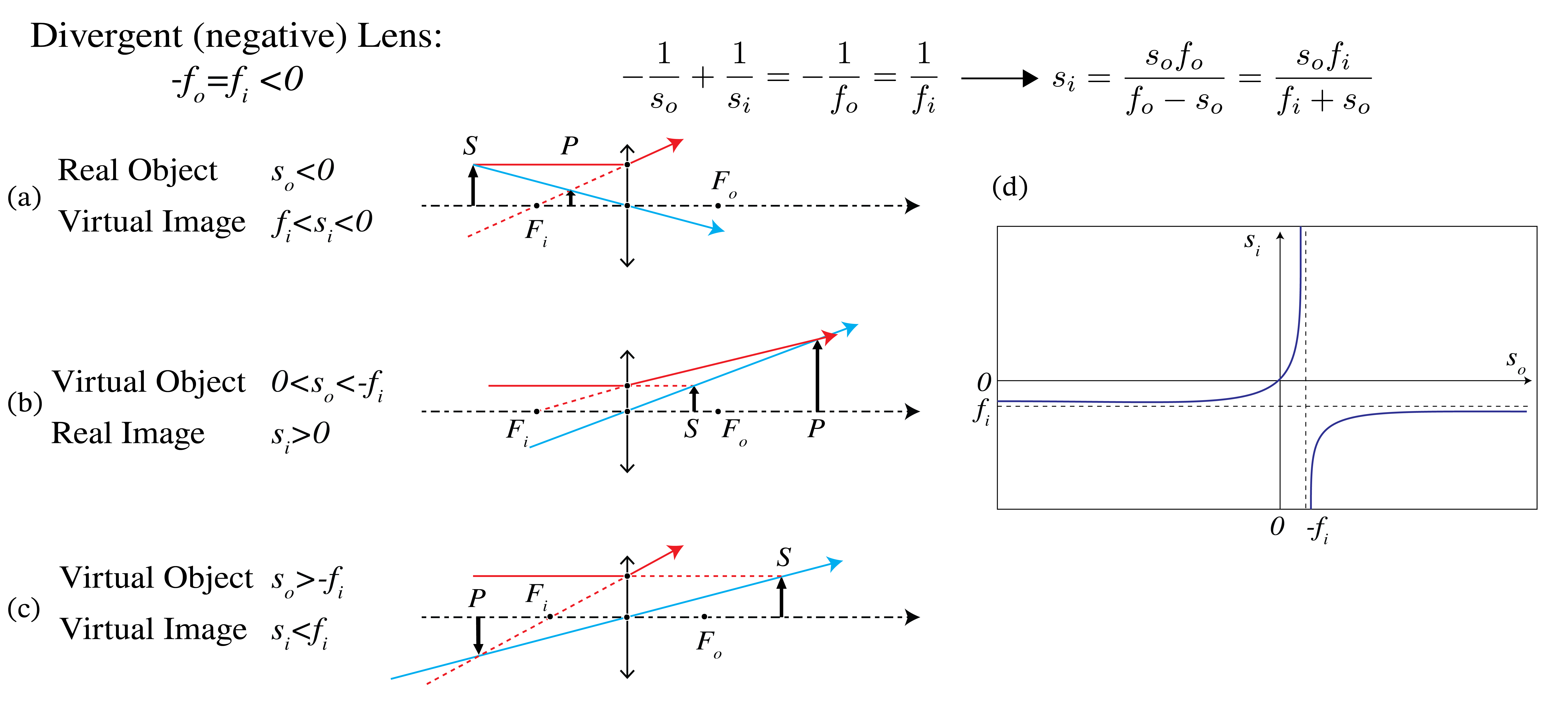

Real and virtual objects and images for a divergent thin lens with the same refractive index to the left and right of the lens, i.e. -f_o=f_i<0. In (a) the object is real, i.e. s_o<0. The diverging lens makes the cone of rays from the object more divergent so that the image is virtual: s_i<0. When the object is virtual, there is a cone of converging rays incident from the left which after extension to the right of the lens (as if the lens is not present) intersect in the virtual object S (s_o>0). It depends on how strong the convergence is whether the diverging lens turns this cone into converging rays or whether the rays keep diverging. In (b) 0<s_o<-f_i, and the image is real. In c) s_o>-f_i and the image is virtual (s_i<0). In (d) s_i is shown as function of s_o for a divergent lens (f_i<0 (see ).

Figure 6:Real and virtual objects and images for a divergent thin lens with the same refractive index to the left and right of the lens, i.e. −fo=fi<0-f_o=f_i<0. In (a) the object is real, i.e. so<0s_o<0. The diverging lens makes the cone of rays from the object more divergent so that the image is virtual: si<0s_i<0. When the object is virtual, there is a cone of converging rays incident from the left which after extension to the right of the lens (as if the lens is not present) intersect in the virtual object S (so>0s_o>0). It depends on how strong the convergence is whether the diverging lens turns this cone into converging rays or whether the rays keep diverging. In (b) 0<so<−fi0<s_o<-f_i, and the image is real. In c) so>−fis_o>-f_i and the image is virtual (si<0s_i<0). In (d) sis_i is shown as function of sos_o for a divergent lens (fi<0f_i<0 (see Eq. (35)).

4Two Thin Lenses

The ray matrix is a suitable method to study the imaging of a system consisting of several thin lenses. For two lenses however, the imaging can still easily be obtained by construction. We simply construct the image obtained by the first lens as if the second lens were not present and use this image as (possibly virtual) object for the second lens. In Figure 7 an example is shown where the distance between the lenses is larger than the sum of their focal lengths. First the image P′P' of SS is constructed as obtained by L1L_1 as if L2L_2 were not present. We construct the intermediate image P′P' due to lens L1L_1 using ray 2 and 3. P′P' is a real image for lens L1L_1 and also a real object for lens L2L_2. Ray 3 is parallel to the optical axis between the two lenses and is thus refracted by lens L2L_2 through its back focal point F2iF_{2i}. Ray 4 is the ray from P′P' through the center of lens L2L_2. The image point PP is the intersection of ray 3 and 4.

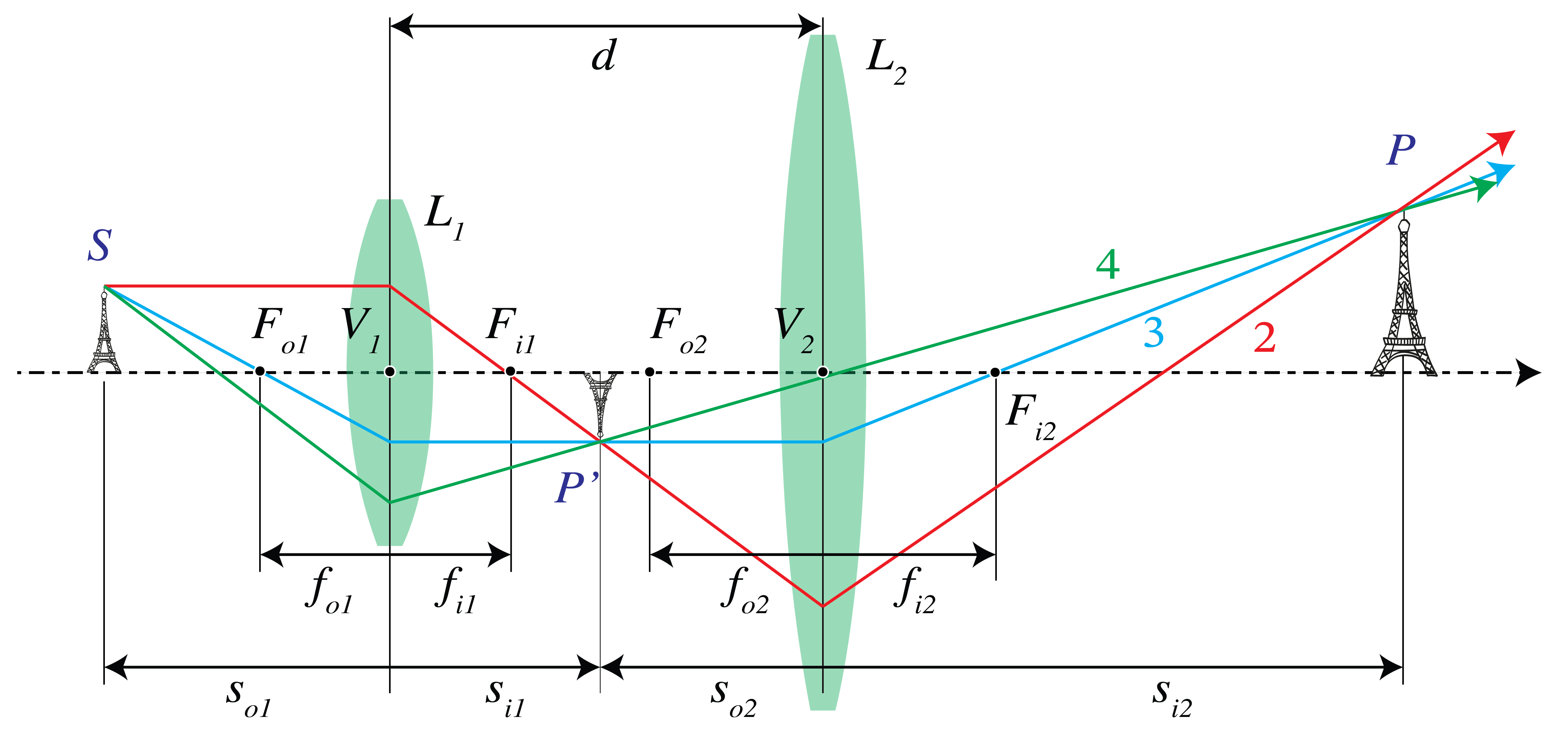

Two thin lenses separated by a distance that is larger than the sum of their focal lengths.

Figure 7:Two thin lenses separated by a distance that is larger than the sum of their focal lengths.

In the case of Figure 8 the distance dd between the two positive lenses is smaller than their focal lengths. The intermediate image P′P' is a real image for L1L_1 obtained as the intersection of rays 2 and 4 passing through the object and image focal points Fo1F_{o1} and Fi1F_{i1} of lens L1L_1. P′P' is now a virtual object for lens L2L_2. To find its image by L2L_2, draw ray 3 from P′P' through the center of lens L2L_2 back to SS (this ray is refracted by lens L1L_1 but not by L2L_2) and draw ray 4 as refracted by lens L2L_2. Since ray 4 is parallel to the optical axis between the lenses, it passes through the back focal point F2iF_{2i} of lens L2L_2. The intersection point of ray 3 and 4 is the final image point PP.

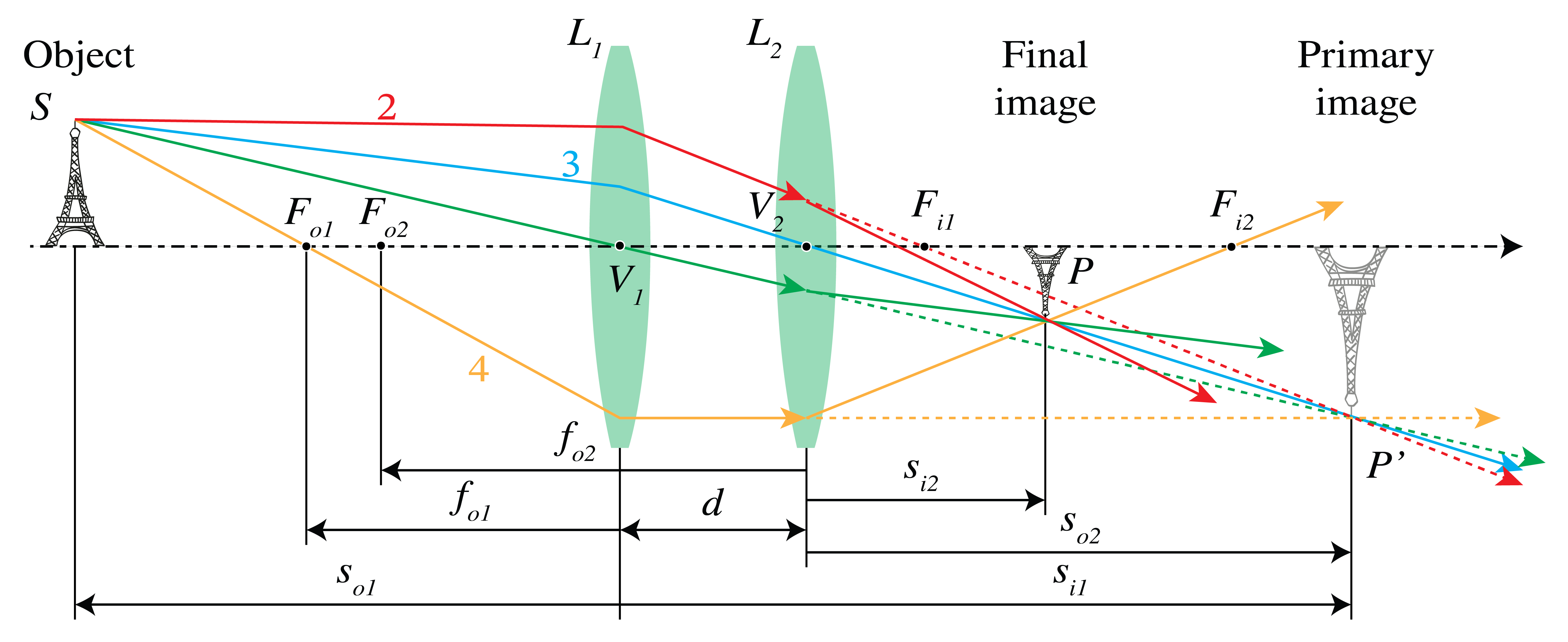

Two thin lenses at a distance smaller than their focal lengths.

Figure 8:Two thin lenses at a distance smaller than their focal lengths.

It is easy to express the zz-coordinate sis_i with respect to the coordinate system with origin at the vertex V2V_2 of the final image point, in the zz-component sos_o with respect to the origin at the vertex of lens L1L_1 of the object point. We use the Lensmaker’s Formula for each lens while taking care that the proper local coordinate systems are used. The intermediate image P′P' due to lens L1L_1 has zz-coordinate s1is_{1i} with respect to the coordinate system with origin at the vertex V1V_1, which satisfies:

−1so+1s1i=1f1i.\begin{align*} -\frac{1}{s_o} + \frac{1}{s_{1i}}=\frac{1}{f_{1i}}. \end{align*}
(42)

As object for lens L2L_2, P′P' has zz-coordinate with respect to the coordinate system with origin at V2V_2 given by: s2o=s1i−ds_{2o}=s_{1i}-d, where dd is the distance between the lenses. Hence, with si=s2is_i=s_{2i} the Lensmaker’s Formula for lens L2L_2 implies:

−1s1i−d+1si=1f2i.\begin{align*} -\frac{1}{s_{1i}-d} + \frac{1}{s_i} = \frac{1}{f_{2i}}. \end{align*}
(43)

By solving Eq. (42) for s1is_{1i} and substituting the result into Eq. (43), we find

si=−df1if2i+f2i(fi1−d)sof1i(f2i−d)+(f1i+f2i−d)so,      twothinlenses.\begin{align*} s_i = \frac{ -d f_{1i}f_{2i} + f_{2i}(f_{i1}-d)s_o }{f_{1i}(f_{2i}-d) + (f_{1i}+f_{2i}-d) s_o}, \;\;\; \quad \mathbf{two thin lenses}. \end{align*}
(44)

By taking the limit so→−∞s_o \rightarrow -\infty, we obtain the zz-coordinate fif_i of the image focal point of the two lenses, while si→∞s_i\rightarrow \infty gives the zz-coordinate fof_o of the object focal point:

fi=(f1i−d)f2if1i+f2i−d,\begin{align*} f_i&= \frac{ (f_{1i}-d) f_{2i}}{f_{1i}+f_{2i}-d}, \end{align*}
(45)
fo=−(f2i−d)f1if1i+f2i−d,\begin{align*} f_o &= -\frac{(f_{2i}-d)f_{1i}}{f_{1i}+f_{2i} - d}, \end{align*}
(46)

We found in Section 2 that when the refractive indices of the media before and after the lens are the same, the object and image focal lengths of a thin lens are the identical. However, as follows from Eq. (45) and Eq. (46) the object and image focal lengths are in general different when there are several lenses.

By construction using the intermediate image, it is clear that the magnification of the two-lens system is the product of the magnifications of the two lenses:

M=M1M2.\begin{align*} M = M_1 M_2. \end{align*}
(47)

Remarks.

  1. When f1i+f2i=df_{1i}+f_{2i}=d the focal points are at infinity. Such a system is called telecentric.

  2. In the limit where the lenses are very close together: d→0d\rightarrow 0, Eq. (44) becomes

−1so+1si=1f1i+1f2i.\begin{align*} -\frac{1}{s_o } + \frac{1}{s_i} = \frac{1}{f_{1i}} + \frac{1}{f_{2i}}. \end{align*}
(48)

The focal length fi f_i of the system of two lenses in contact thus satisfies:

1fi=1f1i+1f2i.\begin{align*} \frac{1}{f_i} = \frac{1}{f_{1i}} + \frac{1}{f_{2i}}. \end{align*}
(49)

In particular, by the using two identical lenses in contact, the focal length is halved.

  1. Although for two lenses the image coordinate can still be expressed relatively easily in the object distance, for systems with more lenses finding the overall ray matrix and then using the image condition Eq. (32) is a much better strategy.

5The Thick Lens

At the left of Figure 9 a thick lens is shown. The object focal point is defined as the point whose rays are refracted such that the emerging rays are parallel to the optical axis. By extending the incident and emerging rays by straight segments, the points of intersection are found to be on a curved surface, which close to the optical axis, i.e. in the paraxial approximation, is in good approximation a plane perpendicular to the optical axis. This plane is called the primary principal plane and its intersection with the optical axis is called the primary principal point H1H_1.

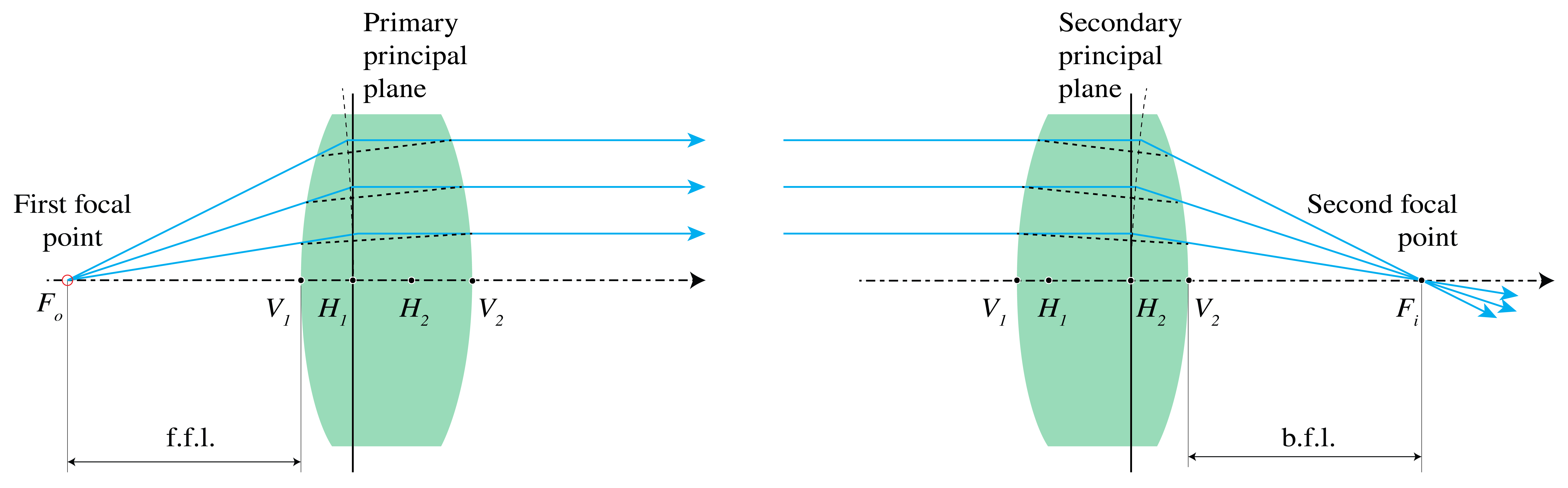

Principal planes of a thick lens, with front and back focal lengths: f.f.l and b.f.l.

Figure 9:Principal planes of a thick lens, with front and back focal lengths: f.f.l and b.f.l.

By considering incident rays which are parallel to the optical axis and therefore focused in the image focal point, the secondary principal plane and secondary principal point H2H_2 are defined in a similar way (see the drawing at the right in Figure 9). The principal planes can be outside the lens. For meniscus lenses, this is usually the case as shown in Figure 10. It can be seen from Figure 9 that the principal planes are images of each other, with unit magnification. Hence, if an object is placed in the primary principal plane (hypothetically if this plane is inside the lens), its image is in the secondary principal plane. The image is erect and has unit magnification.

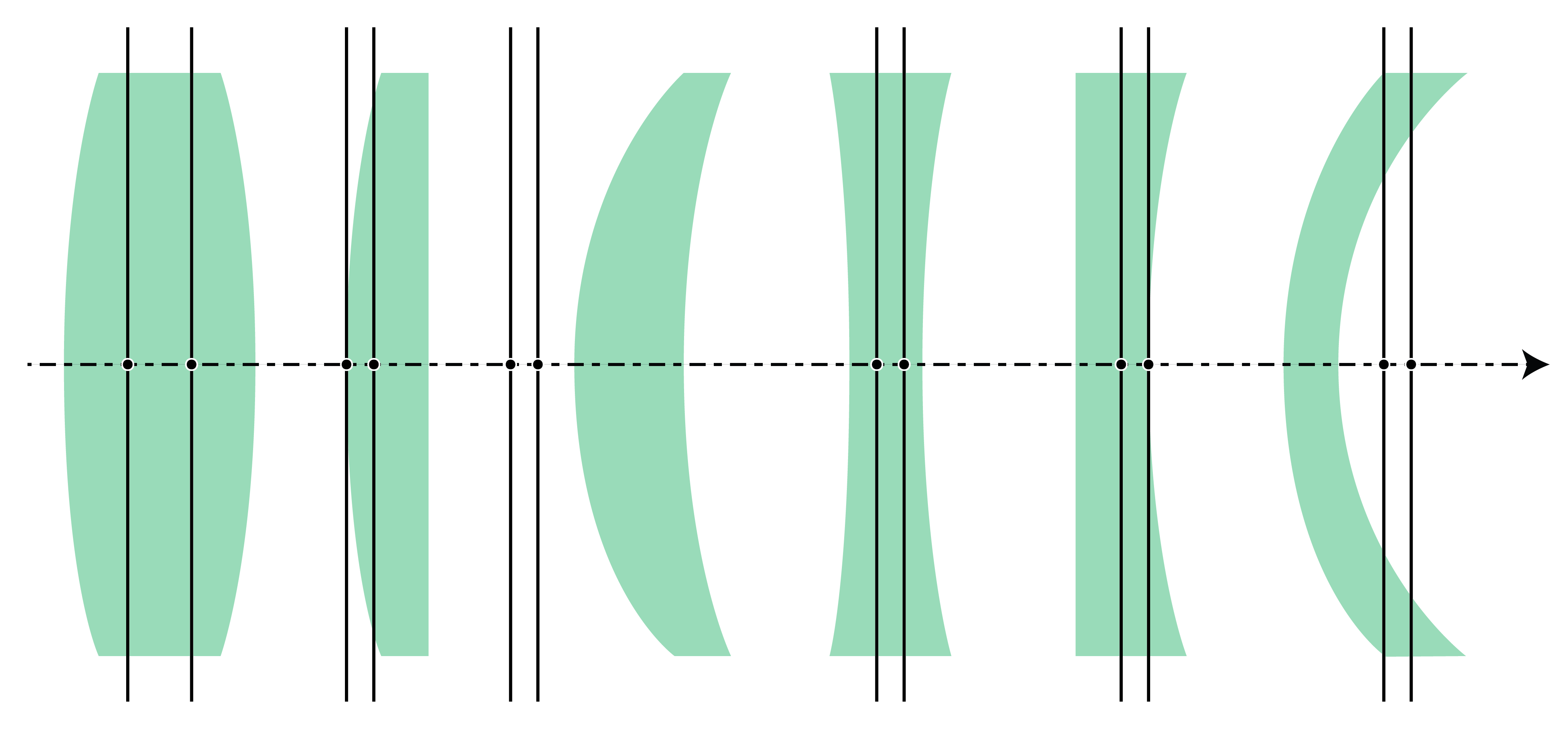

Position of the principal planes for several lenses.

Figure 10:Position of the principal planes for several lenses.

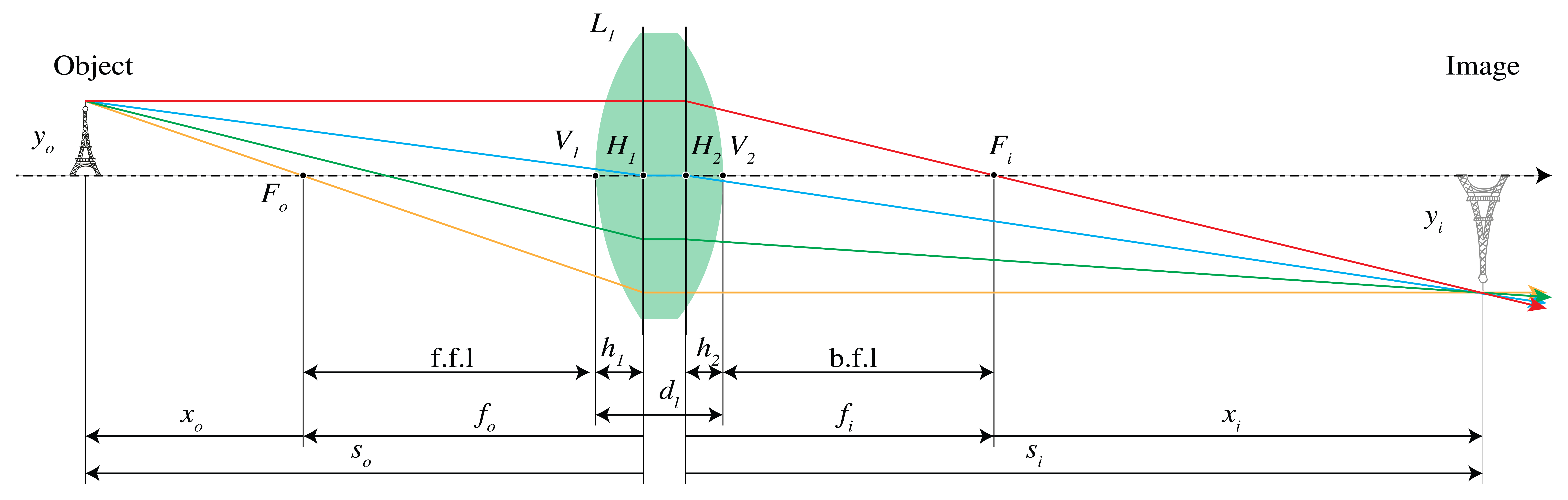

Now, if the object coordinates and object focal point are defined with respect to the origin at H1H_1 and the image coordinates and image focal point are defined with respect to the origin in H2H_2, the Lensmaker’s formula Eq. (35) can also be used for a thick lens.

Proof

We recall the result Eq. (23) for the ray matrix between the planes through the front and back vertices V1V_1, V2V_2 of a thick lens with refractive index nln_l and thickness dd:

MV1V2=(1−dnlP2−Pdnl1−dnlP1),thicklens,\begin{align*} {\cal M}_{V_1V_2} &= \left( \begin{array}{cc}1 - \frac{d}{n_l}P_2 & -P \\\frac{d}{n_l} & 1 -\frac{d}{n_l}P_1 \end{array}\right), \quad \mathbf{thick lens}, \end{align*}
(50)

where

P1=nl−n1R1,P2=n2−nlR2,\begin{align*} P_1= \frac{n_l-n_1}{R_1}, \quad P_2=\frac{n_2-n_l}{R_2}, \end{align*}
(51)

and n1n_1, n2n_2 are the refractive indices to the left and the right of the lens, respectively, and where

P=P1+P2−dnlP1P2.\begin{align*} P=P_1+P_2 - \frac{d}{n_l}P_1P_2. \end{align*}
(52)

If h1h_1 is the zz-coordinate of the first principal point H1H_1 with respect to the coordinate system with origin at vertex V1V_1, we have according to Eq. (16) for the ray matrix between the primary principal plane and the plane through vertex V1V_1

M1=(10h1n11).\begin{align*} {\cal M}_1=\left( \begin{array}{cc}1 & 0 \\\frac{h_1}{n_1} & 1 \end{array}\right). \end{align*}
(53)

Similarly, if h2h_2 is the coordinate of the secondary principal point H2H_2 with respect to the coordinate system with V2V_2 as origin, the ray matrix between the plane through vertex V2V_2 and the secondary principal plane is

M2=(10h2n21).\begin{align*} {\cal M}_2=\left( \begin{array}{cc}1 & 0 \\\frac{h_2}{n_2} & 1 \end{array}\right). \end{align*}
(54)

The ray matrix between the two principle planes is then

MH1H2=M2MV1V2M1.\begin{align*} {\cal M}_{H_1H_2}= {\cal M}_2 {\cal M}_{V_1V_2}{\cal M}_1. \end{align*}
(55)

The coordinates h1h_1 and h2h_2 can be found by imposing to the resulting matrix the imaging condition Eq. (32): C=0C=0 and the condition that the magnification should be unity: D=1D=1, which follows from Eq. (33). We omit the details and only give the resulting expressions here:

h1=n1nlP2Pd,\begin{align*} h_1 &= \frac{n_1}{n_l} \frac{P_2}{P} d, \end{align*}
(56)
h2=−n2nlP1Pd.\begin{align*} \\ h_2 &= -\frac{n_2}{n_l} \frac{P_1}{P} d.\end{align*}
(57)

With these results, Eq. (55) becomes

MH1H2=(1−P01).\begin{align*} {\cal M}_{H_1H_2}= \left( \begin{array}{cc}1 & -P \\0 & 1 \end{array}\right). \end{align*}
(58)

We see that the ray matrix between the principal planes is identical to the ray matrix of a thin lens Eq. (25). We therefore conclude that if the coordinates in object space are chosen with respect to the origin in the primary principal point H1H_1, and the coordinates in image space are chosen with respect to the origin in the secondary principal point H2H_2, the expressions for the first and second focal points and for the coordinates of the image point in terms of that of the object point are identical to that for a thin lens. An example of imaging by a thick lens is shown in Figure 11.

Thick-lens geometry. There holds f_i=f_o if the ambient medium left of the lens is the same as to the right of the lens. All coordinates in object and image space are with respect to the origin in H_1 and H_2, respectively.

Figure 11:Thick-lens geometry. There holds fi=fof_i=f_o if the ambient medium left of the lens is the same as to the right of the lens. All coordinates in object and image space are with respect to the origin in H1H_1 and H2H_2, respectively.

6Chapter Summary

Chapters
Problems
Chapters
Problems
